Thermostat Multi-Wireless Wifi BLE BACnet MSTP Modbus RTU LoRaWAN RS485 Aimesh AMH-5L

LoRaWAN Protocol WIFI BACnet MSTP LoRaWan Class A and C BLE Modbus RTU RS485 Multiple Region Supported Extra Long Distance Low Power Consumption Occupany sensiong I/O

Description

AMH-5L regulates the zone temperature by sension the zone temperature and controls fan coil and water valve to achieve user desired temperature for comfort and energy saving purposes. It is applicable for two/four pipe system, Direct/Floationg Valve, and three speed fan coil control. It supports LoRaWAN Class A and Class C protocol, WIFI, BLE, BACnet MSTP and Modbus RTU, It is suitable to be used in high end office building, hotels, club hourse, airports, high speed rail stations and residential premises etc.

• LoRAWAN Protocol
• Internal Antenna
• WIFI
• BACnet MSTP / IP
• Multiple Region Supported
• LoRaWan Class A and C
• BLE
• Modbus RTU / IP
• Extra Long Distance
• Low Power Consumption
• RS485
• Occupany sension I/O

Features

• Temperature setting
• Beautiful black background LCD
• Sensor fault alarm
• Intelligence control
• Auxiliary electric heating
• Direct / Floating vale control
• Fan speed selection : Low, Medium, High, Auto
• Mode selection : Cool, Heat, Ventilation, Automatic Heating and Cooling
• Scheduler ( 1 day ), user can preset on and off timer to automate thermostat on and off time
• One-click energy saving mode, user can choose in eco mode or always on mode for LCD screen by only one click
• 4-period programmable setting, user can preset the desired temperature set point for 4 different time perid in a day.

Device Info

Model : AMH-5L
Description : LoRaWAN Thermostat

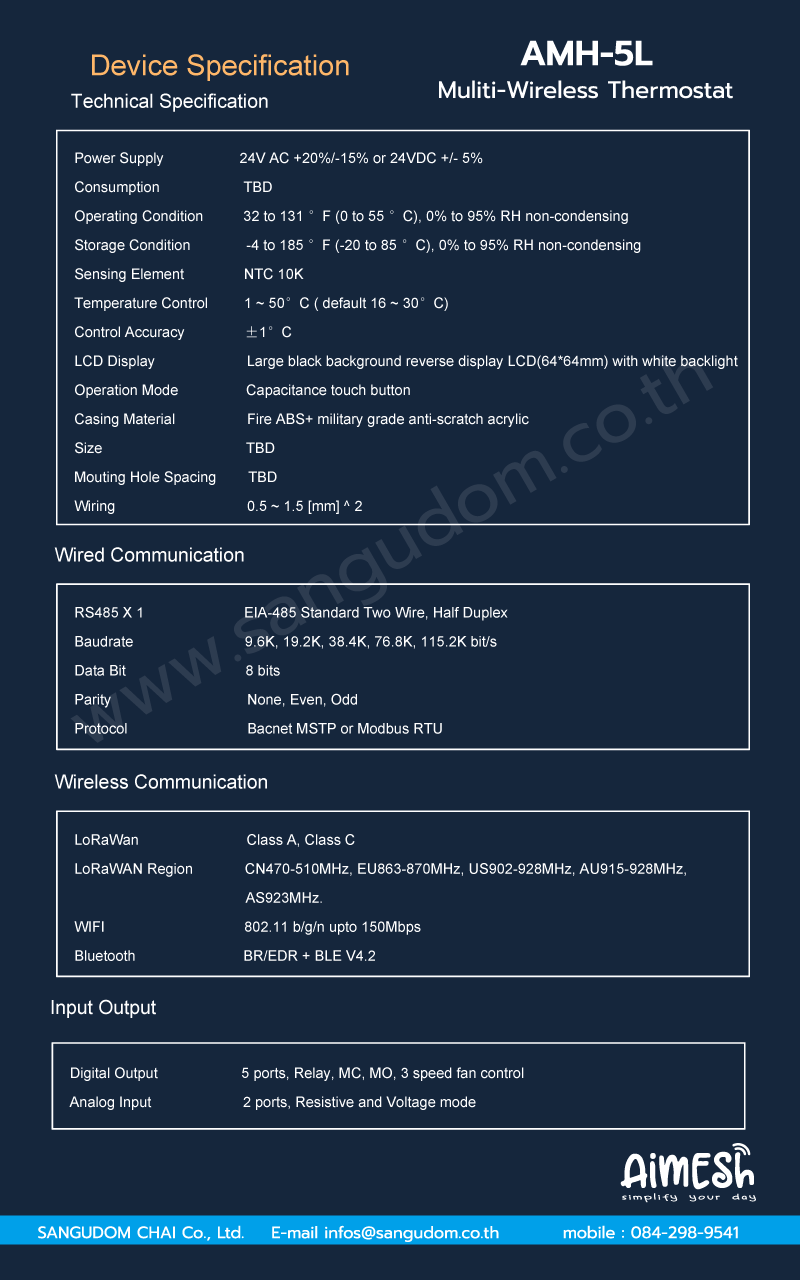

Device Specification

Technical Specification
